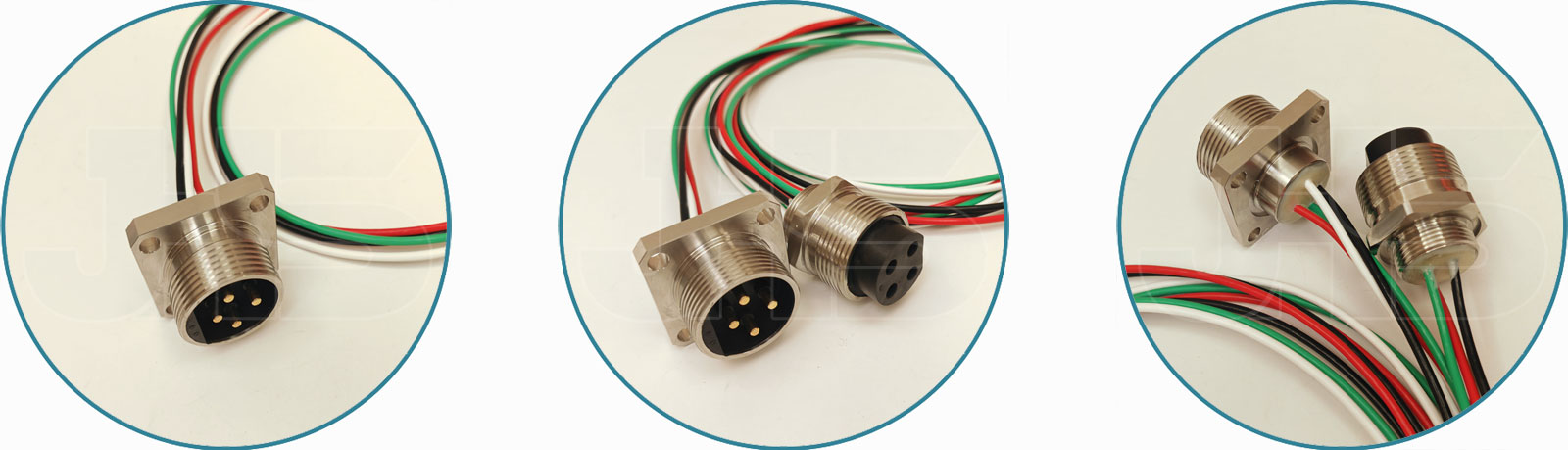

The 5500 series is an extremely rugged and reliable underwater electrical onnector. This Metal Shell series is mostly used for medium and large ROV. It is also used on offshore drilling and production equipment.

Metal Shell 5500-15 series connector configuration ranges from 2, 3, 4, 6, 8 contacts.

Metal Shell 5500-20 series connector configuration ranges from 3, 4, 6, 8, 13, 21 contacts.

Metal Shell 5500-24 series connector configuration ranges from 10, 12, 20 contacts.

Metal Shell 5500-32 series connector configuration ranges from 10,12,16,21,24 contacts.

Application

• Underwater robotics such as Remotely Operated Vehicle, Autonomous Underwater Vehicle systems , Remotely operated towed vehicle (ROV's & ROTV's & AUV)
• Underwater systems and equipment, marine inspection, subsea sensors
• Oceanographic systems, hydrographic survey equipment and instrumentation solutions
• Offshore oil and gas,Sonar systems, renewable energy and subsea system
• Underwater camera, video, lighting and tracking systems
• Diving systems and equipment
• Material Specifications

Material Specifications

• Bulkhead Socket: Brass (C36000) or Stainless Steel 316L or Titanium or Anodised Aluminium
• Connector Body: Neoprene Rubber
• Contacts: Gold Plated Brass (H62)
• O-Rings: Nitrile
• Locking Sleeves: Stainless Steel or POM
• Cables: Default neoprene outer sheathed cable ( Polyurethane cable is available upon request)
