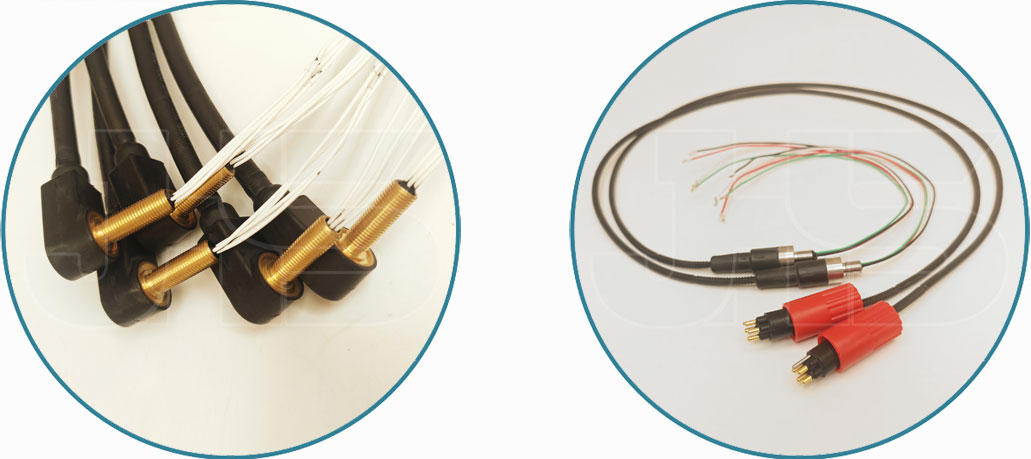

Underwater Penetrator ConnectorsUnderwater Penetrator Connectors
Penetrator water block straight and right angel available. Penetrator series is afixed installation alternative to inline and bulkhead connectors. The threadmaterials, size and length could be customized.
Application
- ROV'S & ROTV'S
- Defence systems and equipment
- Oceanographic systems, equipment and instrumentation solutions
- Offshore oil and gas, renewable energy and subsea systems
- Underwater camera, video and lighting systems
- Diving systems and equipment
Material Specifications
- Penetrator metal part: Brass(C36000)、Stainless steel 316 L.
- Penetrator Body: Neoprene Rubber
- 0-Rings: Nitrile
- Cables: Default neoprene outer sheathed cable
Pnasta/ Pnastmc/ Pnara
Connector Specifications
| Pigtails cable type and length: Customized | |||
| Resistance | >200Mohm | Volatage Rating | 300/600 V |
|---|---|---|---|
| Qualified Pressure | 80Mpa | Working Temperature | -40~60°C |
| current rating | Depends on wire and conductor size | ||
